CFD Tested Rear Wing (V2) MK6 GTI & Golf R 2010-2014

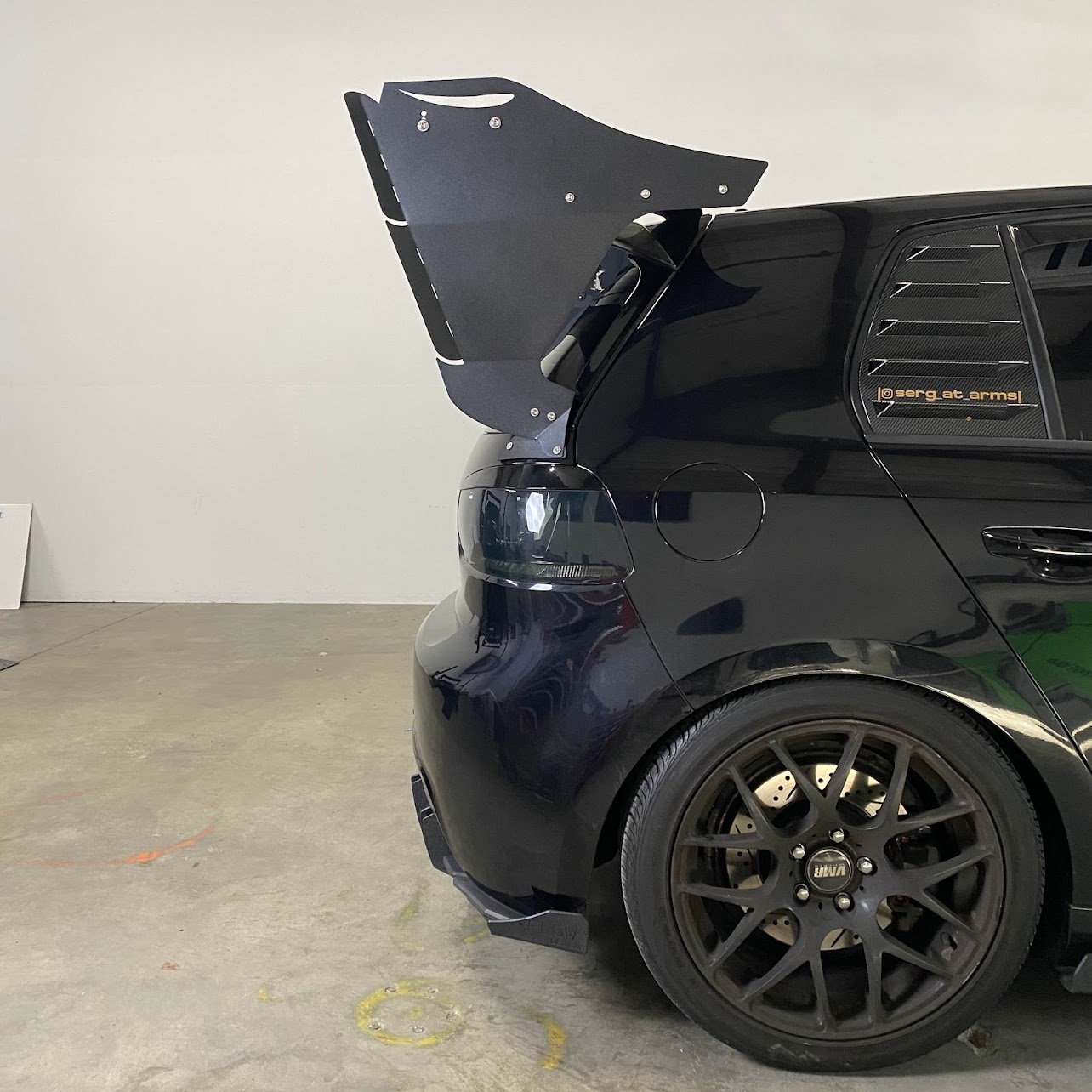

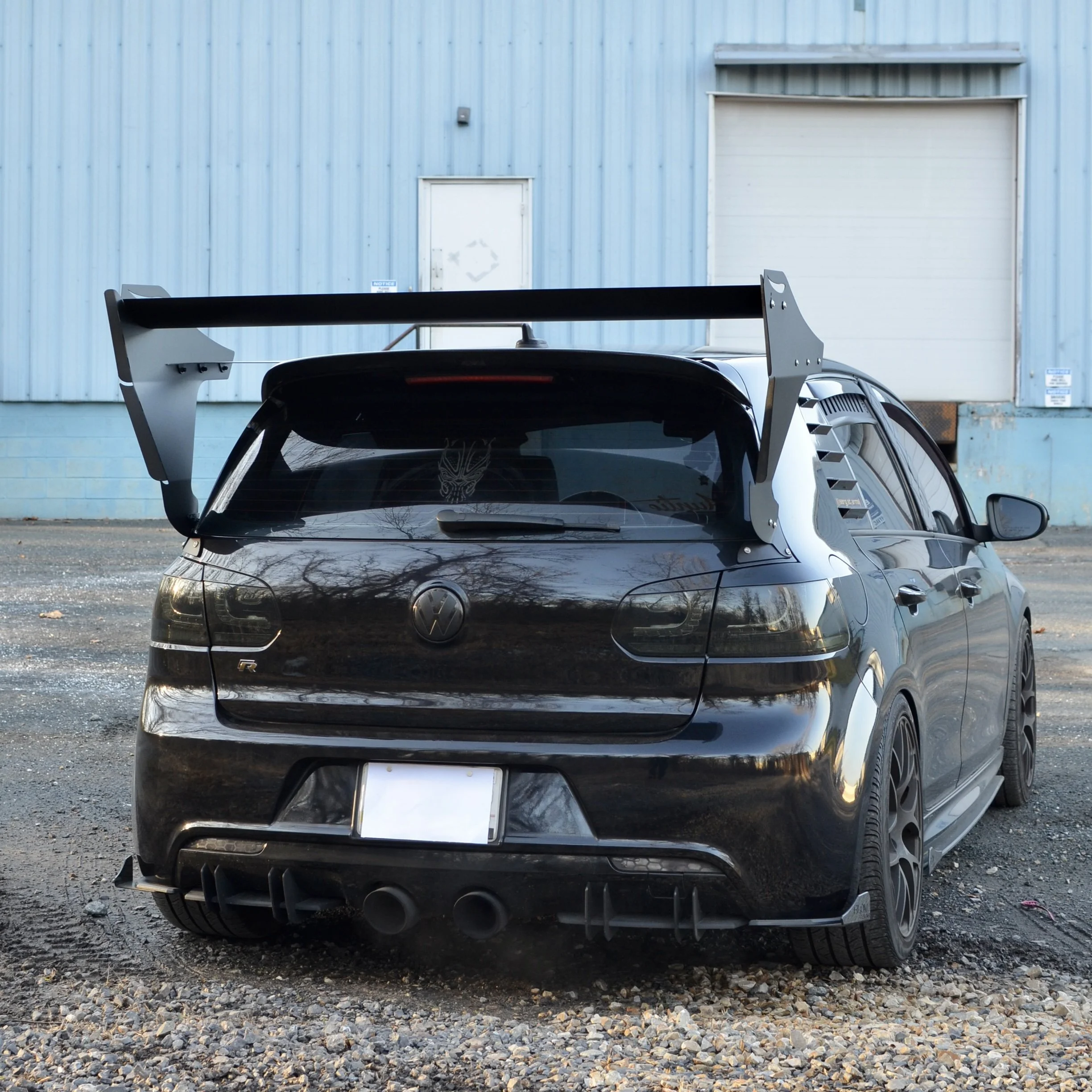

Designed to complement the lines of the MK6 Golf platform & add class-leading downforce to the rear of the vehicle, this modular wing can be run at angles of attack from 0 - 10 degrees (in 5 degree increments) allowing the flexibility to balance aero upgrades at the front or change your setup from track to track.

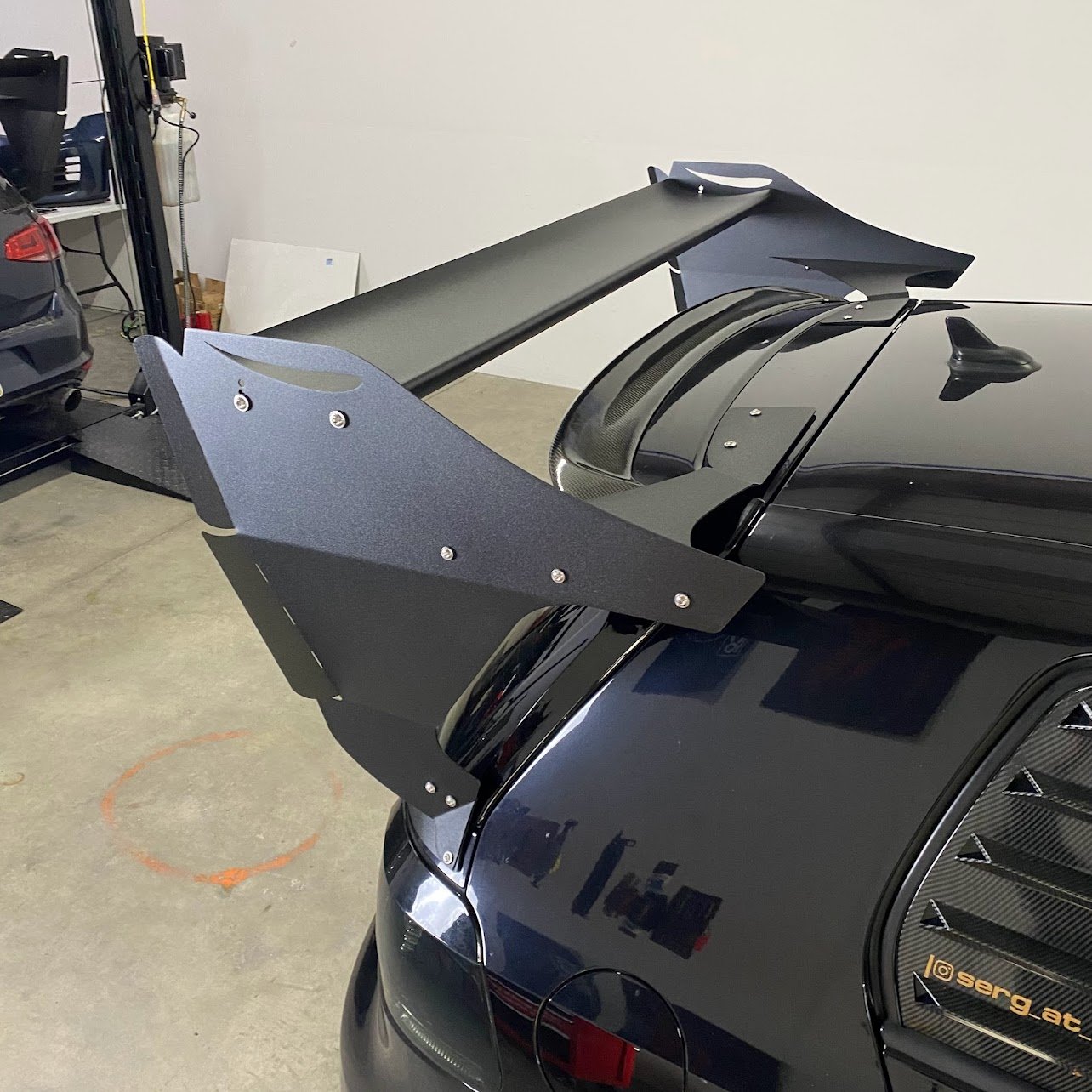

Made from laser cut .100/080 5052 plate & extruded 6061 aerospace aluminum, the main airfoil & dual secondary canards are both strong and lightweight (entire assembly weighs less than 17 lbs!) Wing kit comes complete with endplates, all necessary brackets, Neoprene damping material, slip washers & stainless buttonhead mounting hardware.
The airfoil is a highly efficient 55” extrusion with an 8.8” chord and deep cambered profile, offering a drag ratio of between 12.8:1 and 9.08:1 (depending on AOA.) See performance data chart in images below.
Mounting requires drilling of 8 holes in the factory spoiler to receive stainless M6 rivet nuts. The entire assembly can be removed from your vehicle in minutes with 10 screws. Raw aluminum finish & matte black powder coating options are available.
Please note that this is a low volume, hand-crafted product. Allow 3-4 weeks for customization, finishing, kit assembly and shipping.
Design & Development

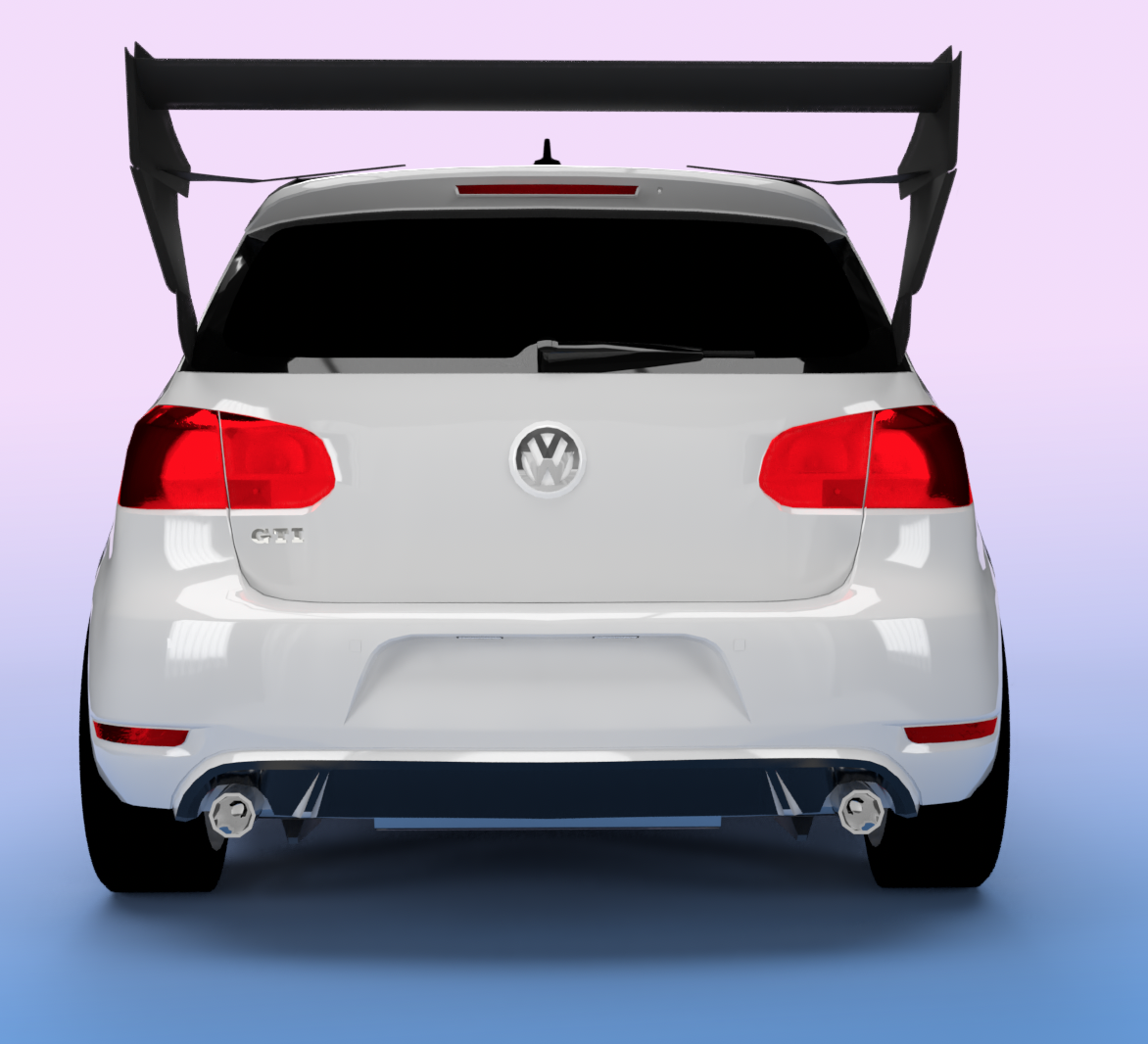

The YRC wing system has been developed over multiple months using CFD (computational fluid dynamics) simulations to maximize downforce, drag and longitudinal stability. YRC performed all of our simulations on a 1:1 MK7 GTI model to gather the most accurate data possible, fist adapting the design to the MK5 and now the MK6.
If you research providers of aerodynamic parts, you may find that many provide only free-stream data for their airfoils, either because their wing was designed to be universal or it yields more impressive numbers when run under ideal conditions. This YRC wing kit has been developed specifically for the MK6 platform to address some of the unique challenges of adding an effective wing to a hatchback. Our end-mounted airfoil and oversized endplates ensure uninterrupted flow to the aerodynamic surfaces, increasing underwing suction, minimizing drag and improving the overall efficiency of the system.
To learn more about the steps in our CFD design, simulation and testing process, YRC has a great overview here.
To learn more about the joint design & development work CJM & YRC did for the original MK7 aero kit that this wing was adapted from, check out some of our video content on the YRC YouTube page.
